A programmable computer

After this round, you

• can explain the principle architecture stored-program computers and automatic execution
• have familiarity with the role of assembly languages
• can implement simple algorithms in the course's armlet assembly language
• are aware of computational universality

Feedback repetition quiz

Consider the following sequential logic circuit:

where denotes the operation XOR (exclusive or).

A programmable machine, this far

Binary representation of data (here, an 8 bit bus)

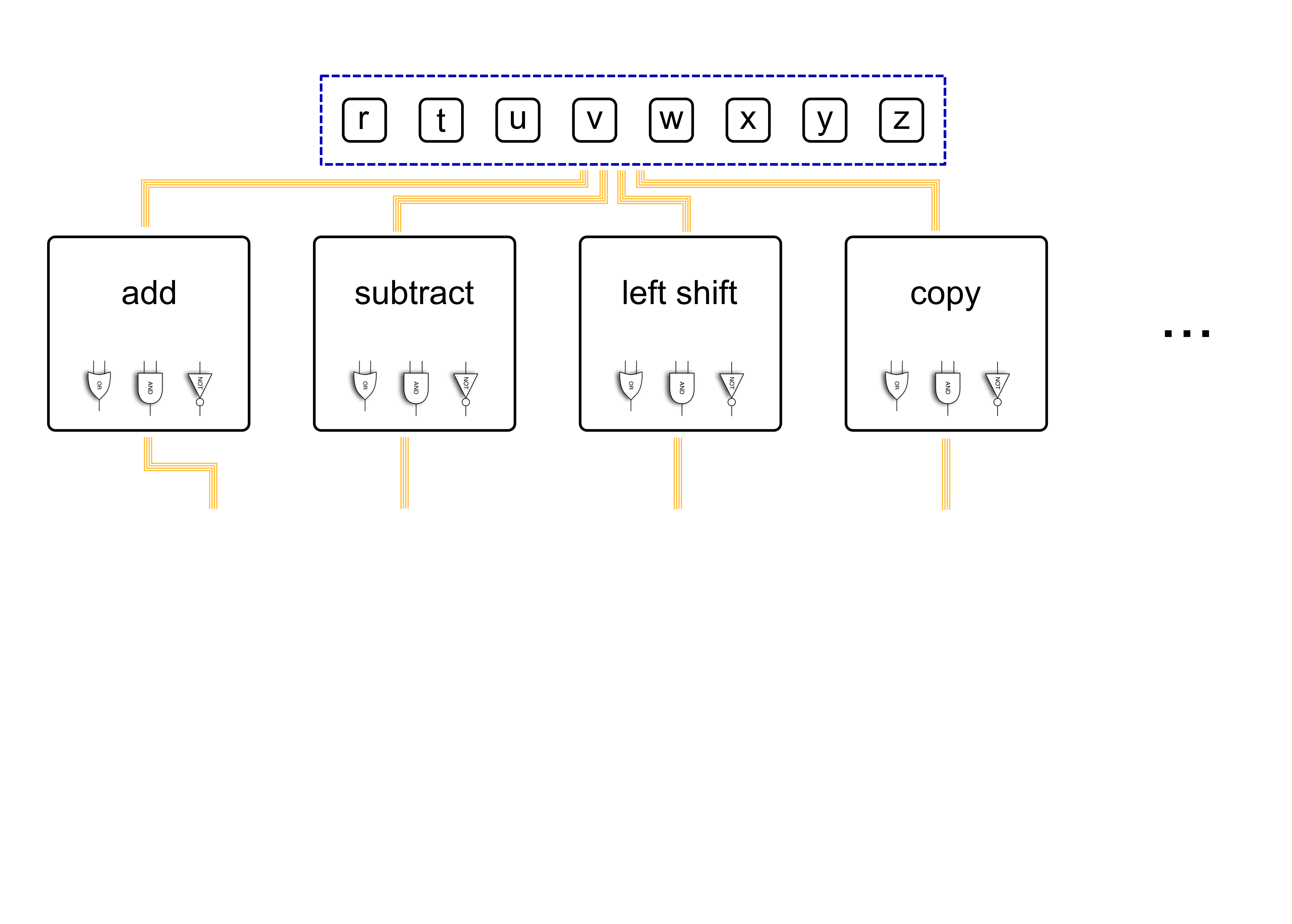

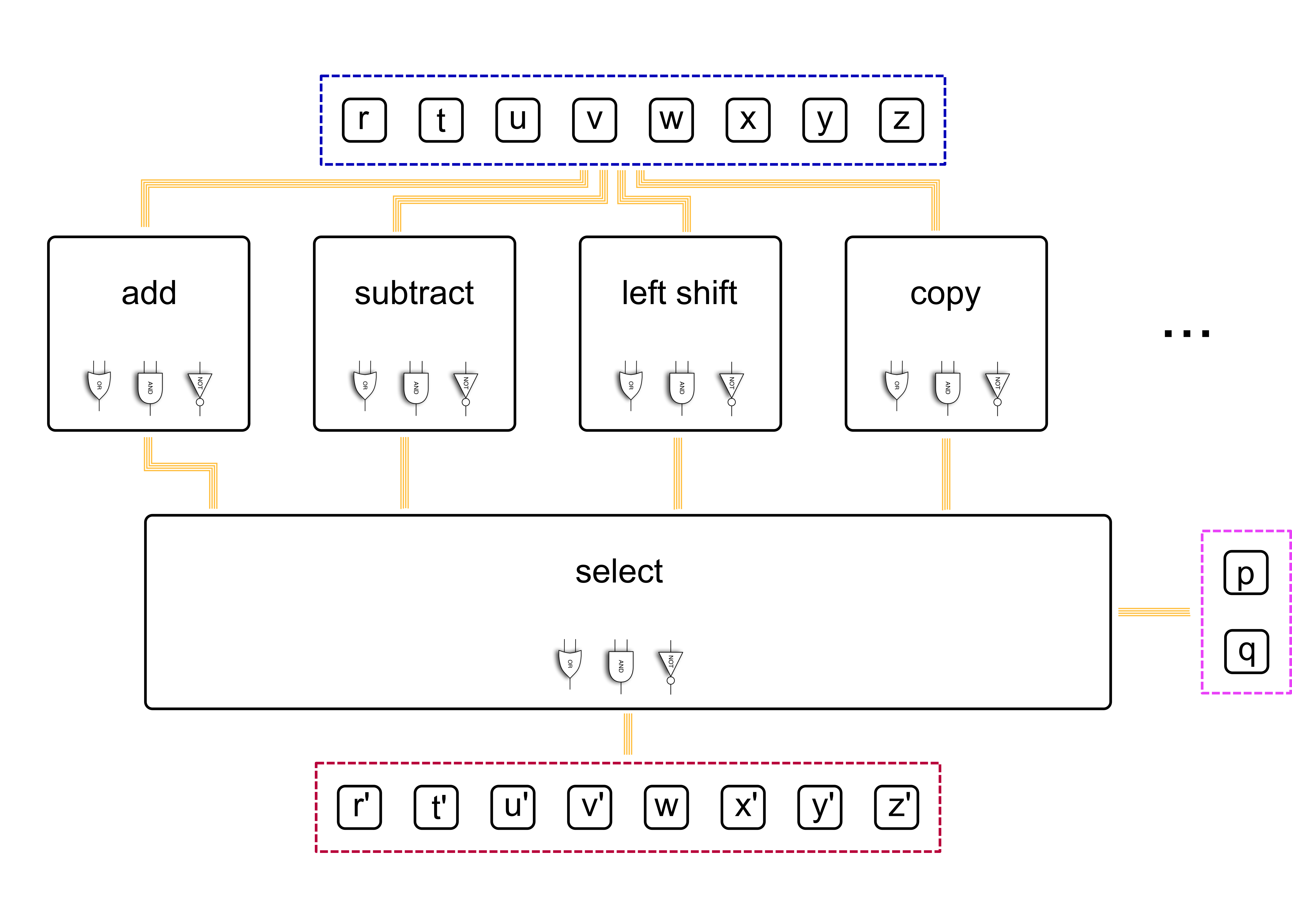

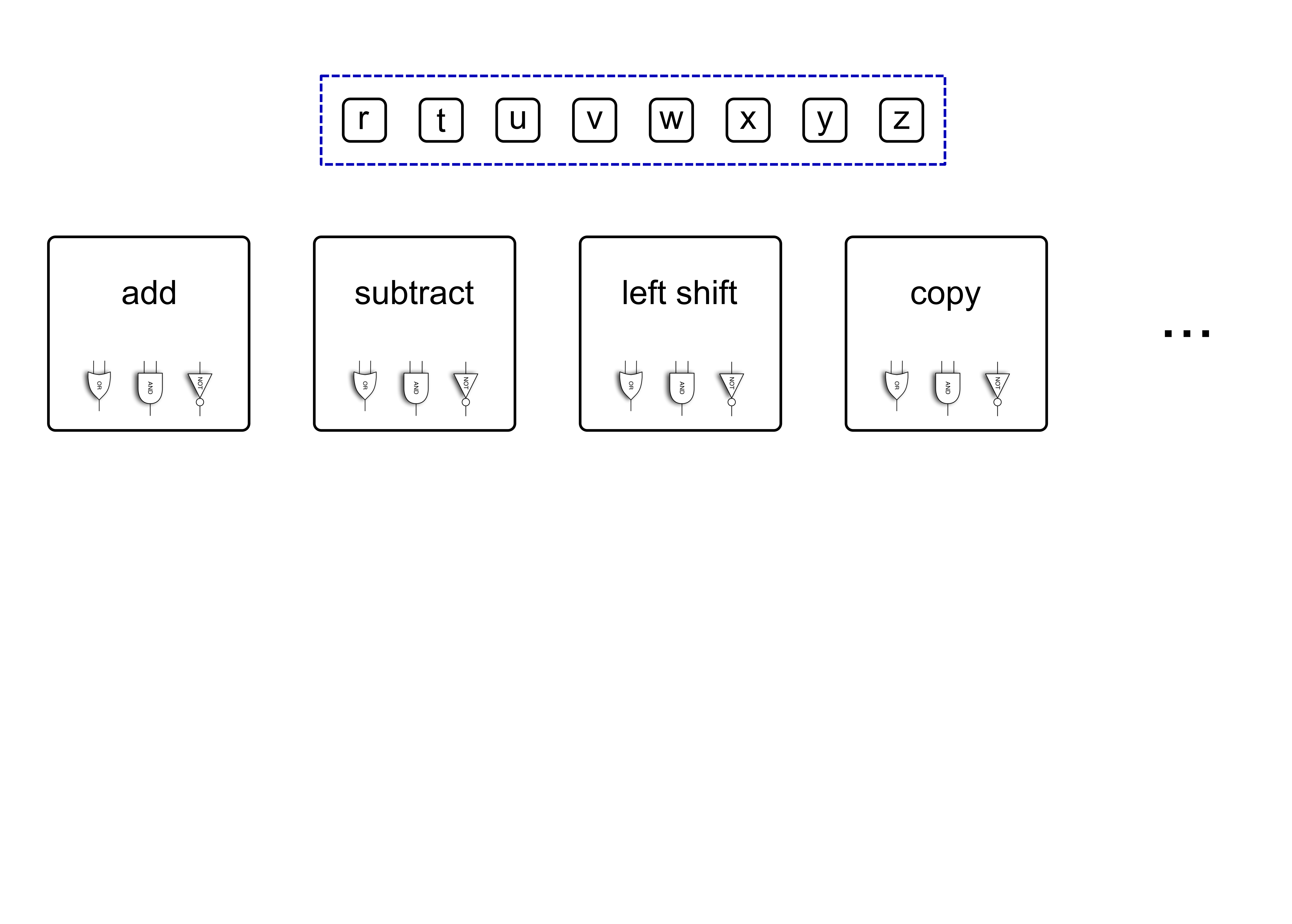

A programmable machine, this far

Combinational logic

A programmable machine, this far

Combinational logic

A programmable machine, this far

Combinational logic

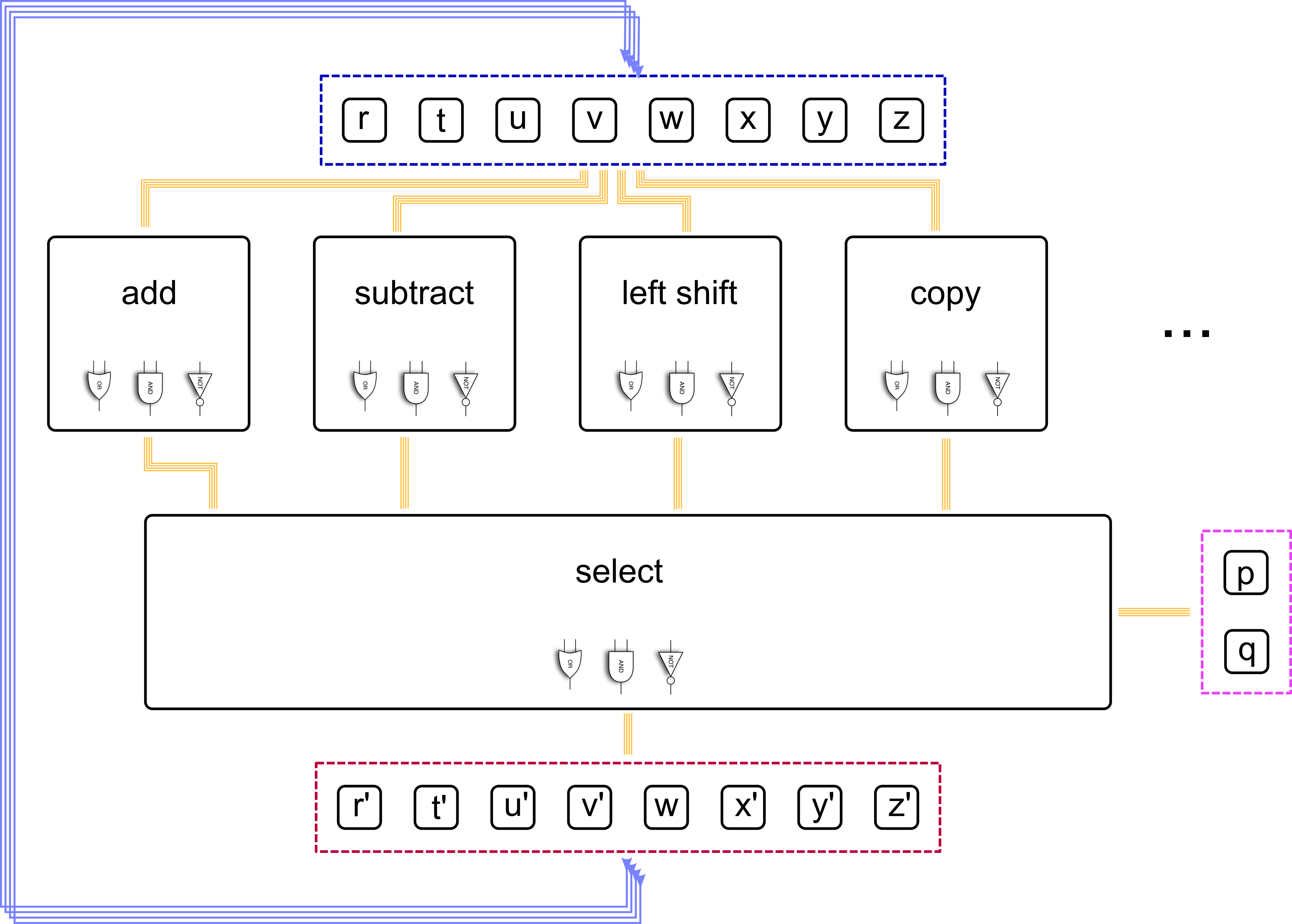

A programmable machine, this far

Sequential logic, for state

Arithmetic Logic Unit (ALU)

Takes care of calculations and logic in a computer processor

The Armlet Architecture ALU

ALU = Arithmetic Logic Unit

• $0 … $7 are registers, internal state
• immed_in allows data input
• operation encodes which operation to perform
• L, A, B are destination (L) and source registers (A, B)

This far: memory

Sequential logic also allows us to retain state, and build a memory

Internally, each memory word retains its state (e.g. using feedback) until it is updated by a write)

This far: memory

A memory module is circuit of multiple one-word memories that can be addressed (indexed)

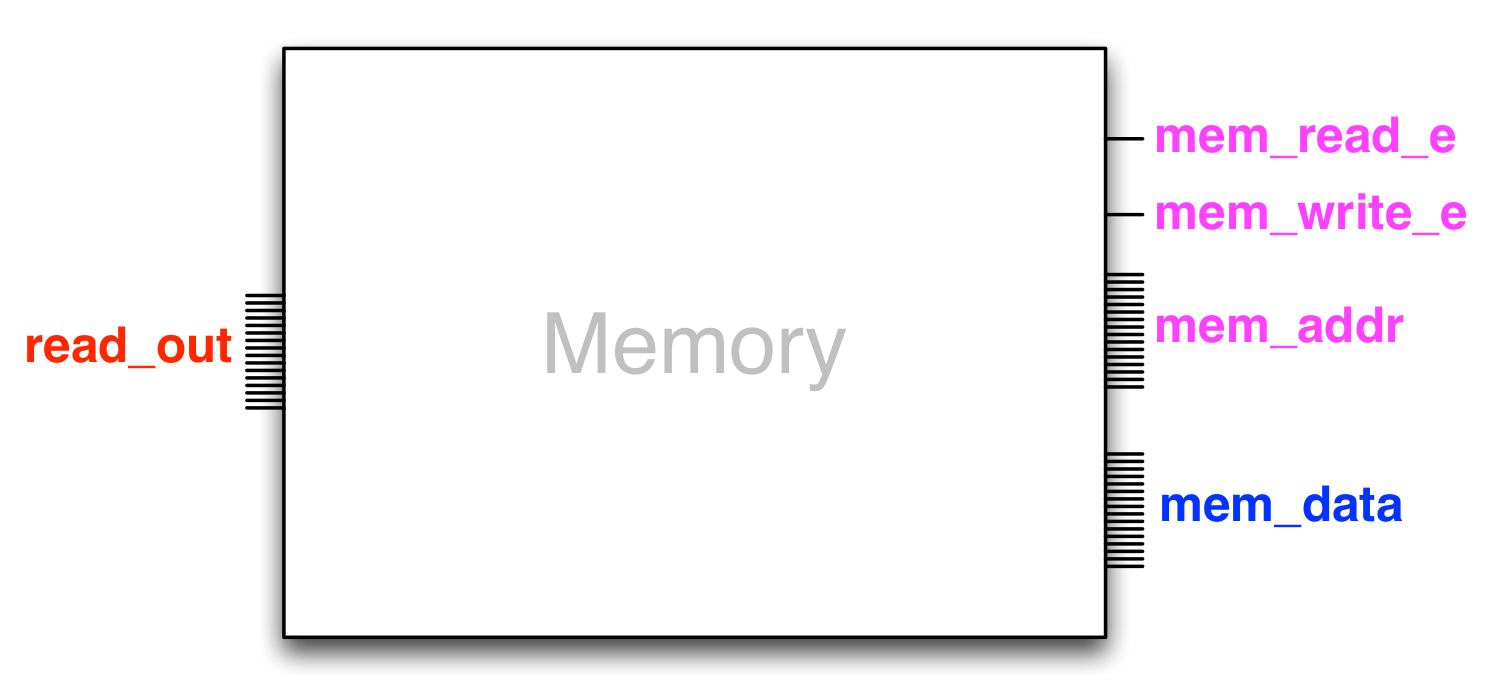

Memory module concept (Armlet)

• mem_addr is the memory address bus
• Gates mem_read_e and mem_write_e control reading/writing on that address
• mem_data and read_out are the input/output buses
• The width (number of gates/bits) of the memory address bus and the word-size of the i/o buses ultimately determines memory capacity
• A memory with mem_addr size \(n\) can hold \(2^n\) words of data

Memory can be conceptualized as a table

This far: The clock

• The clock triggers feedback in a circuit at regular intervals
  • Today's processors operating on the GHz scale
• Like a heartbeat driving the sequential circuit logic

This far: The clock (and the counter)

What would a program for the ALU be?

Let's put programs in memory!

• A program is a sequence of instructions (bits) in the memory
  • A program counter contains the address of the current instruction
  • Each tick the instruction is loaded from memory to the ALU
• The machine executes the program automatically, one instruction at a time

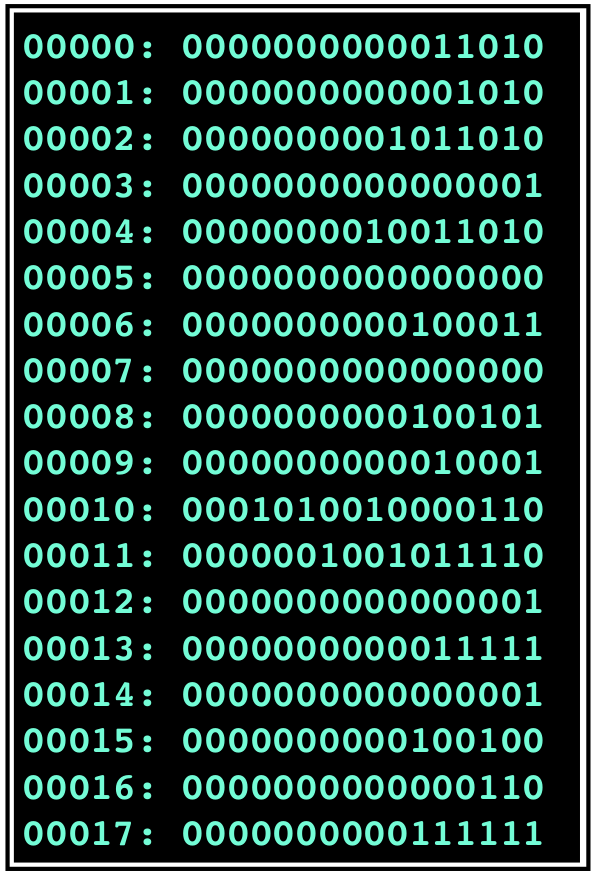

• Machine code

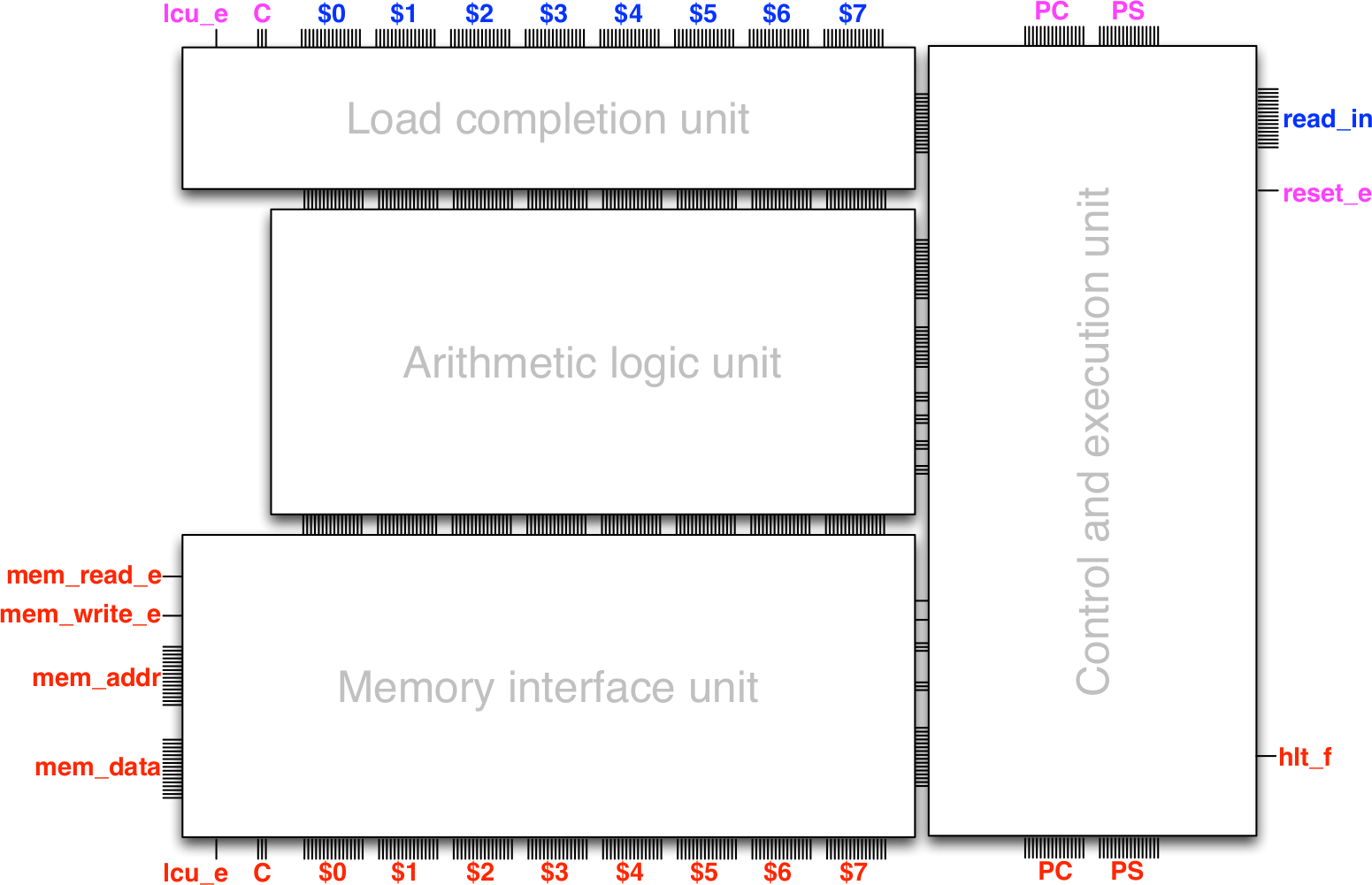

Armlet – Control & execution unit

Conditional branching

Armlet – Control & execution unit

(Armlet is an example of a von Neumann architecture)

Briefly: Halting and Trapping

(How does the processor know when to stop executing?)

• Special instruction to halt execution (without the possibility of continuing)
• Instruction to trap execution - breaking execution temporarily (useful for debugging)

Programming

In principle, we can program a computer by setting bits in memory corresponding to the instructions we want the processor to execute

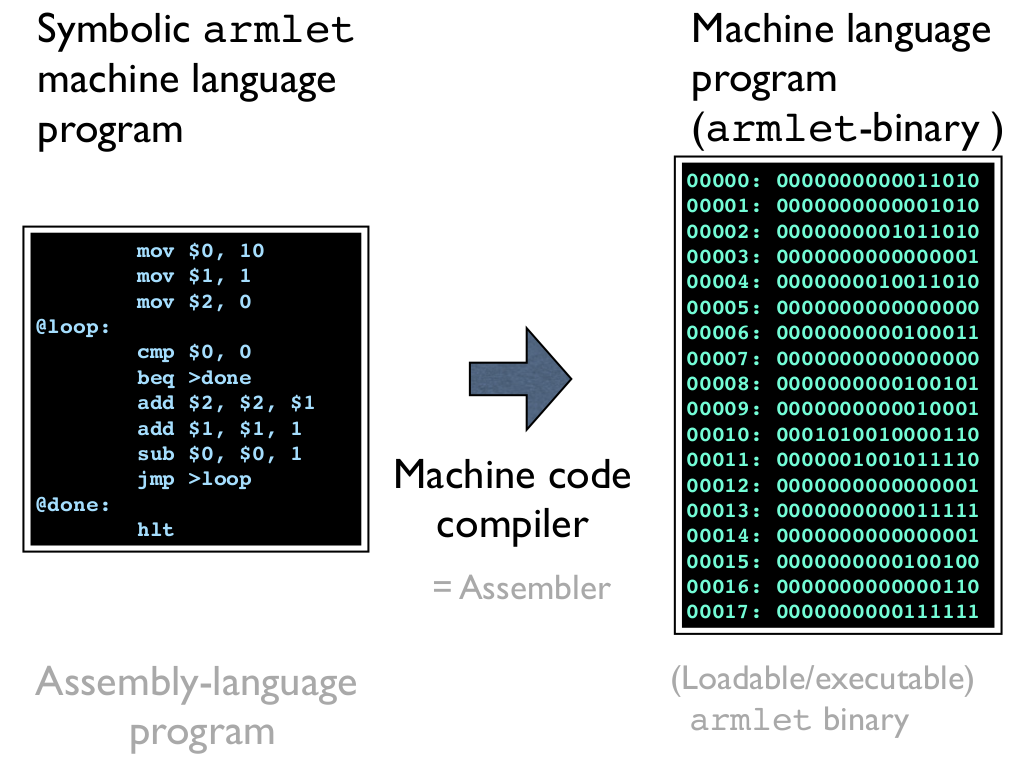

The machine code compiler (assembler)

The Mystery of the Computer

Solved?

• Yes, in a sense,
  • We can (conceptually) build a programmable machine
  • if we can implement the building blocks of sequential logic
  • This can be done in hardware
  • Then a program is a sequence of binary instructions for this architecture
  • Humans usually like to program in text, so we can translate (compile) program code to machine code
• Armlet is a simulated 16 bit architecture built in Scala, using constructions like those used in previous exercises
• Note - armlet is simulated by a model of hardware in software on a computer…

Universality

A programmable machine can, with right programming, simulate another programmable machine

• Computing and programming are concepts which are independent of the device and the programming language

• Emulators
• Virtualization
• Containers
• But, computers can also be built in other systems as long as these have power equivalent to sequential logic…

For instance – computers inside Minecraft …

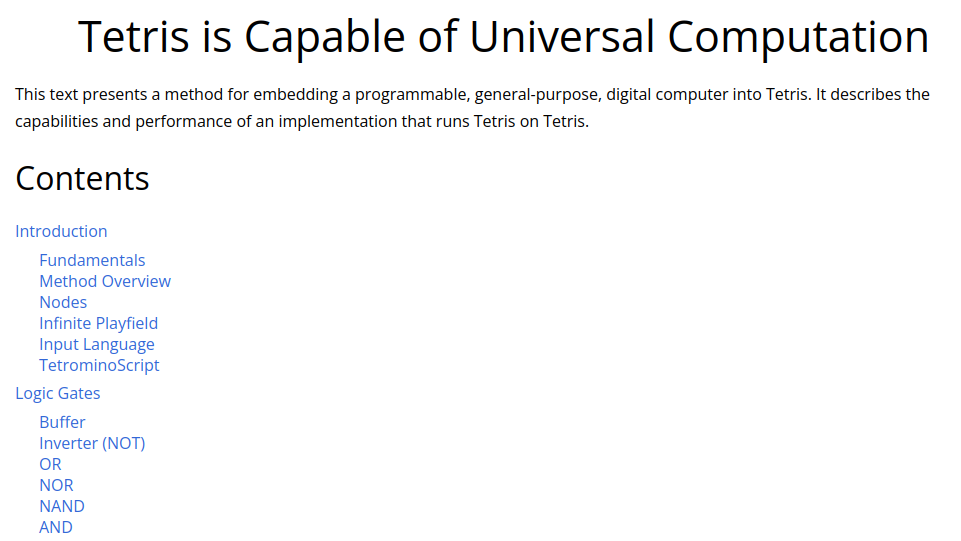

…or based on tetris?

Conceptually (on armlet):

• Eight var's (the registers) and one huge array (the memory)
• Arithmetic and logic operations, as well as control logic
• Operations that the processor can do in one tick

We will program Assembly – Comment your code!

Always, do it but especially in this round!

Our first armlet program

var t = 10
var i = 1
var s = 0

while t != 0 do
  s = s + i
  i = i + 1
  t = t - 1
// Now the sum is in 's'

        mov $0, 10      # $0 = 10
        mov $1, 1       # $1 = 1
        mov $2, 0       # $2 = 0
@loop:                  # This is a label
        cmp $0, 0       # $0 == 0 ? (PS)
        beq >done       # if PS is eq
        add $2, $2, $1  # $2 = $2 + $1
        add $1, $1, 1   # $1 = $1 + 1
        sub $0, $0, 1   # $0 = $0 - 1
        jmp >loop       # Jump back
@done:                  # Another label
        hlt             # Stop, sum in $2

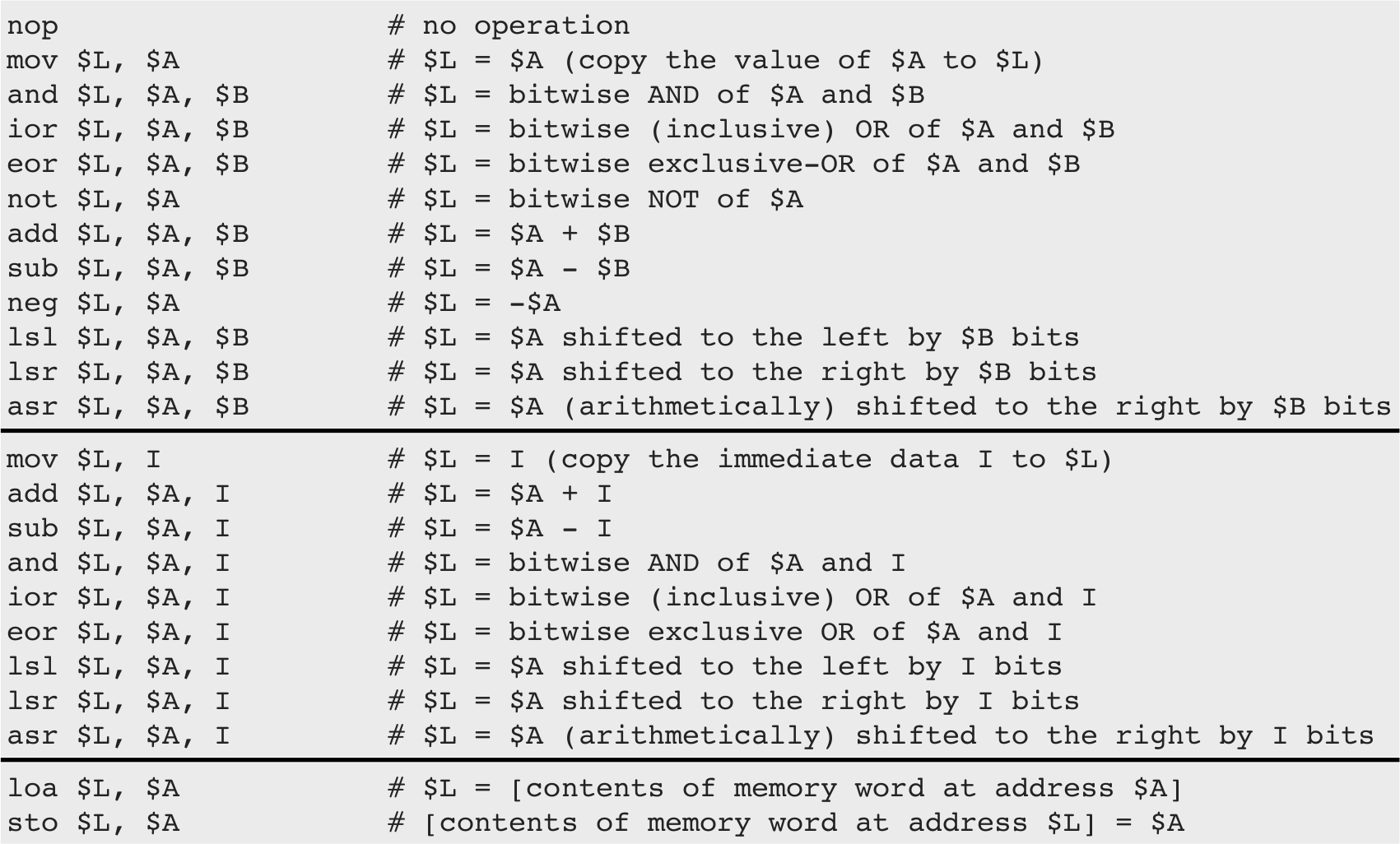

Data Path Instruction set

armlet quick reference

So, for example

mov $0, 10 # $0 = 10
mov $1, 1  # $1 = 1

add $1, $1, 1  # $1 = $1 + 1
sub $0, $0, 1  # $0 = $0 - 1

mov $1, 7
add $2, $1, 3

Jumping and branching

• Recall : Programs are data
  • When the program is assembled it is translated into binary words (data)
  • When a machine runs the program it is loaded into memory, like any other data
  • Program Counter (PC) is set to the address of its first instruction, and execution begins by interpreting data at that location as an instruction
• By changing the PC we can change which instruction is read next
  • PC is set using the jump and branch instructions

Jumping

• A jump moves the argument address to the program counter register
• The effect is that the program execution continues from the new address
• Not to have us deal with absolute addresses the assembler allows for labels in the code
  • A label captures the address where it is written
    • @done: on a line will have the assembler associate that memory address with the label 'done'

   jmp >target    # jump to label @target

   # ... some code here ...

@target:
   # ... some further code here ...

(Note that you can jump both forwards and backwards in the code)

Jmp quiz

What is the value in $1 after this code is executed (starting from the top)?

mov $1, 18     # $1 = 18
add $1, $1, 2  # $1 = $1 + 2
jmp >next      # Jump
mov $2, 10     # $2 = 10
sub $1, $1, $2 # $1 = $1 - $2
@next:
sub $1, $1, 5  # $1 = $1 - 5
hlt            # Stop

Comparison & branching

• Often we want to jump depending if some condition holds
• This is a two-step process
  1. Perform the comparison (register vs register or register vs constant)
  2. Jump depending on result of comparison (branching)
• The jump is executed if and only if the branching condition is true
• Otherwise the execution follows the default order

   # ... code
   # ... code
   # ... code
   # ... code
   cmp $0,0     # compare, this sets PS
   beq >done    # branch this sets PC
   # ... code - This will
   # ... code - only be
   # ... code - done
   # ... code - if $0 != 0
@done:
   # Start here if $0 == 0

        mov $0, 10      # $0 = 10
        mov $1, 1       # $1 = 1
        mov $2, 0       # $2 = 0
@loop:                  # This is a label
        cmp $0, 0       # $0 == 0 ? (PS)
        beq >done       # if PS is eq
        add $2, $2, $1  # $2 = $2 + $1
        add $1, $1, 1   # $1 = $1 + 1
        sub $0, $0, 1   # $0 = $0 - 1
        jmp >loop       # Jump back
@done:                  # Another label
        hlt             # Stop, sum in $2

(Think about: if does one or the other, branching can do a combination of them depending on other instructions.)

Comparison & branching – internally

• cmp updates the Processor Status register
• That is PS holds the result of the most recent cmp call
• Branching instructions reads PS and jumps accordingly
• Therefore there can be code in-between the cmp and the branch instruction!

Branching quiz

What's the value in $0 after this code is executed (starting from the top)?

mov $0, 3      # $0 = 3
@start:
cmp $0, 2      # Compare val. in $0 to 2
sub $0, $0, 1  # $0 = $0 - 1
bne >start     # Branch if last cmp !=
hlt            # Stop

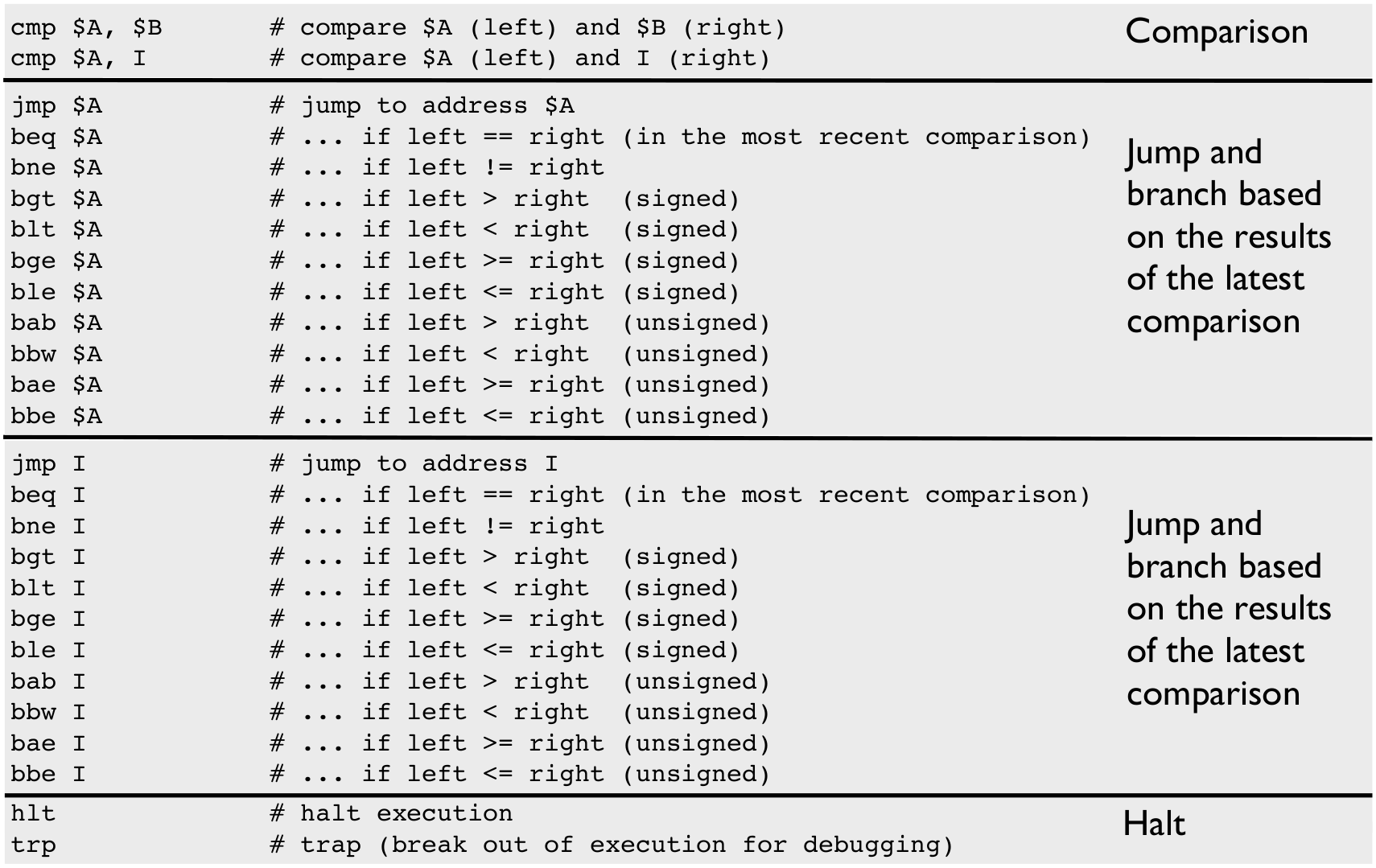

Instructions affecting execution flow

armlet quick reference

Loading and storing data

Example: Updating a value in memory

This program loads a value from memory, increases it by 10, and writes it back to the same memory location:

mov $0, >myDataStart  # Put address of data to $0
loa $1, $0            # $1 = value at address in $0
add $1, $1, 10        # Increase value in $1 by 10
sto $0, $1            # Store the value in $1 to address in $0
hlt                   # Stop
@myDataStart:
%data 5, 6

(After executing the value at the address indicated by @myDataStart is 15, the next one is 6.)

Example: Addresses are values

• Addresses are values: we can index the memory by updating the address that we use for load and store.

• This program loads a value from memory, increases it by 10, and writes it to the memory address two words further:

  mov $0, >myDataStart  # Put address of data to $0
  loa $1, $0            # $1 = value at address in $0
  add $1, $1, 10        # Increase value in $1 by 10
  add $0, $0, 1         # Update the address in $0 by 1
  sto $0, $1            # Store the value in $1 to address in $0
  hlt                   # Stop
  @myDataStart:
  %data 5, 6


  (After executing the value at the address indicated by @myDataStart is 5, the next one is 15.) The reason is the call add $0, $0, 1 which moves the address in $0 one word forward.

• Remember: How a value is interpreted is only determined by the instruction. There is no checking, so had we written sto $1, $0 instead we would have written the value in $0 to address 15 (the content of $1)

Data: loa quiz

What are the values in $1, $2, and $3 after this code is executed (starting from the top)?

mov $0, >myDataStart  # Put address of data to $0
loa $1, $0            # $1 = value at address in $0
add $0, $0, 1         # Increase address
loa $2, $0            # $2 = value at address in $0
add $0, $0, 2         # Increase address
loa $3, $0            # $3 = value at address in $0
hlt
@myDataStart:
%data 5, 6, 7, 8, 9, 10

Example: Loading data from memory

# Computes (to $0) the sum of the data and then halts.

# Let us first set things up ...
      mov $0, 0                    # the sum starts with 0
      mov $2, >length_of_my_data   # set up memory address where to get length
      loa $2, $2                   # load the length from memory to $2
      mov $1, >my_data             # set up memory address where to get the data

# Now let us loop through the data and accumulate the sum ...
@sum_loop:
      cmp $2, 0                    # compare length with 0
      beq >done                    # ... branch to label @done if $2 == 0
      loa $3, $1                   # load a data item from memory
      add $0, $0, $3               # accumulate the sum in $0
      add $1, $1, 1                # advance to next data item
      sub $2, $2, 1                # decrement length by one
      jmp >sum_loop                # continue the summation

# ... until we are done
@done:
      hlt                          # the processor stops here

# Our data follows the program code in the binary ...
@length_of_my_data:
      %data 20
@my_data:
      %data 296, 573, 291, 415, 825, 674, 426, 632, 793, 701, 884, 1, 989, 912, 254, 869, 462, 296, 767, 220

More examples in the course notes

Check our code reading skills:

1. What does the following program do?
2. What are the contents of $0, $1, $2 when execution halts?

 mov $0, 18
 mov $1, 15
 cmp $0, $1
 blt >labA
 mov $2, $0
 jmp >labB
@labA:
 mov $2, $1
@labB:
 lsl $2, $2, 1
 hlt

Comment your code!

Trying it out

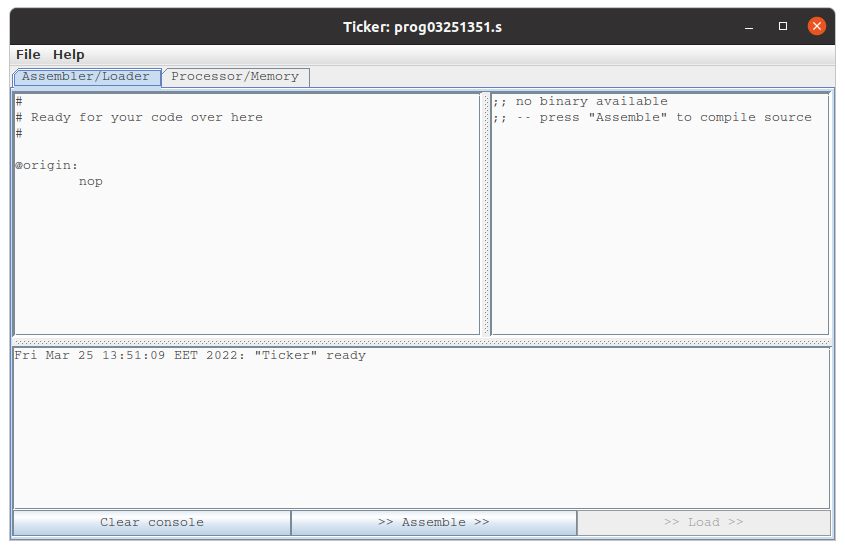

Ticker

Run the program launchTicker.scala in the armlet sub-project.

Can we express more in Scala than in Assembly language?

• In principle no
  • All 'high level' programs are translated to machine code
• In practice yes
  • Abstractions, data types, programming constructs…
  • You can be more productive in high level languages

So why learn to program assembly?

• 'Close to metal'
  • Instructions directly to the hardware
• Unleash the most power of hardware
• The "mother language"

But, it is hard work as a programmer…

(Comment your code!)

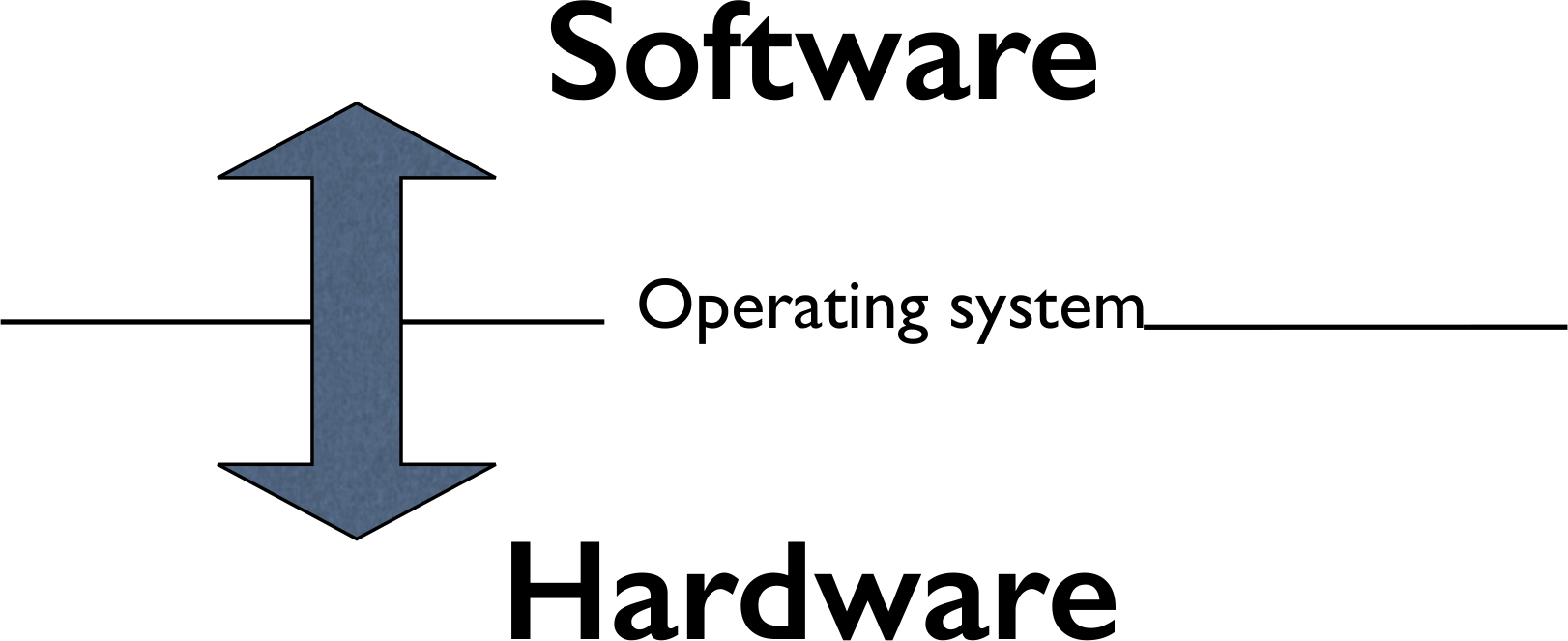

The things we have omitted…

How can two program run simultaneously? How can a program wait for input? Print output? How are high level programs translated into machine code?

Summary

• In the end, everything is bits
• Combinational logic can be used to transform bits
• Sequential logic allows us to keep a state
• Computer Architecture allows us to engineer a machine
• A programmable machine executes a program automatically
• A program can change its control flow (branching) depending on state
• Programming languages (like Scala) are "only" software tools which helps us harness the hardware to do what we as programmers want

Exercises
