Recursion

After this round, you

• have reviewed recursion
  • can define a recursive function
  • can utilise inner functions in your programming
• are aware of stack overflow errors
• can explain tail recursion, and
  • write tail recursive functions
  • show recursive calls by call stacks and expansion
• can define recursive data structures, such as
  • the list
  • the tree
• can make use of recursive problem solving, in particular
  • backtracking search

Recursion recalled

• "Defines something in terms of itself"
  • Recursion: see recursion
  • GNU stands for "GNU's Not Unix"
  • \(f(x) = x + f\left(\frac{x}{2}\right)\)
  • A function that calls itself
  • …
• In practice, our recursive functions usually have two cases:
  • The recursive case, when the function calls itself
  • The base case, which stops the recursion

Recursion recalled: isPalindrome

// Checks if String s is a palindrome.
// Assumes s is only lower case and does
// not contain any spaces or punctuation.
def isPalindrome(s: String): Boolean =
  // empty or one character?
  if s.length <= 1 then true
  // start and end differ?
  else if s.head != s.last then false
  // substring palindrome?
  else isPalindrome(s.substring(1, s.length - 1))
end isPalindrome

One or more base cases, and the function applied to a smaller problem instance

Recursion recalled: inner functions

It is common that the recursive step is only part of what we want to do, in which case it is useful to define it as an inner function.

// Checks if String s with punctuation and spaces removed
// is a palindrome. Ignores case.
def isPalindrome(s: String): Boolean =
  // Helper inner function that encapsulates the recursion.
  // Assumes that the string contains only lower case chars
  // and no spaces or punctuation.
  def actualRecursion(t: String): Boolean =
    if t.length <= 1 then true
    else if t.head != t.last then false
    else actualRecursion(t.substring(1, t.length - 1))
  end actualRecursion
  // Remove spaces and punctuation, transform to lower case
  val sPlain = s.filter(_.isLetterOrDigit).map(_.toLower)
  // Run the actual recursion and return the result
  actualRecursion(sPlain)
end isPalindrome

Recursion recalled: call-stacks

// Calls itself recursively n times.
// Returns a string of the stack trace as base case
def rec(n: Int): String =
  if n == 1 then Thread.currentThread.getStackTrace.mkString("\n")
  else rec(n-1)+"" // Note: +"" to create need to keep state

scala> rec(4)
val res0: String = java.base/java.lang.Thread
  .getStackTrace(Thread.java:2451)
rs$line$1$.rec(rs$line$1:4)
rs$line$1$.rec(rs$line$1:5)
rs$line$1$.rec(rs$line$1:5)
rs$line$1$.rec(rs$line$1:5)
rs$line$2$.<clinit>(rs$line$2:1)
rs$line$2.res0(rs$line$2)
java.base/jdk.internal.reflect.DirectMethodHandleAccessor
  .invoke(DirectMethodHandleAccessor.java:103)
java.base/java.lang.reflect.Method.invoke(Method.java:580)
dotty.tools.repl.Rendering.$anonfun$4(Rendering.scala:119)
scala.Option.flatMap(Option.scala:283)
dotty.tools.repl.Rendering.valueOf(Rendering.scala:119)
// .. (Plus many more lines left out.)

Illustrating isPalindrome recursion using manual call stack

// Checks if String s with punctuation and spaces removed
// is a palindrome. Ignores case.
def isPalindrome(s: String): Boolean =
  // Helper inner function that encapsulates the recursion.
  // Assumes that the string contains only lower case chars
  // and no spaces or punctuation.
  def actualRecursion(t: String): Boolean =
    if t.length <= 1 then true
    else if t.head != t.last then false
    else actualRecursion(t.substring(1, t.length - 1))
  end actualRecursion
  // Remove spaces and punctuation, transform to lower case
  val sPlain = s.filter(_.isLetterOrDigit).map(_.toLower)
  // Run the actual recursion and return the result
  actualRecursion(sPlain)
end isPalindrome

Using expansion to illustrate a recursive function

• If the recursion function is side-effect-free we can expand the calls instead
• Should be familiar from mathematics, for example:
  • \(f(x) = x + f\left(\frac{x}{2}\right) = x + \frac{x}{2} + \frac{x}{4} + \frac{x}{8} + \ldots\)
• Or, in the case of isPalindrome, until we find a base case:

isPalindrome("ufo tofu") =
actualRecursion("ufo tofu".filter(_.isLetterOrDigit).map(_.toLower)) =
actualRecursion("ufotofu".map(_.toLower)) =
actualRecursion("ufotofu") =
actualRecursion("fotof") =
actualRecursion("oto") =
actualRecursion("t") =
true

Stack overflow

Example: factorial function

 def fact(n : Int): BigInt =
   require(n >= 1, "n should be a positive integer")
   if(n == 1) then BigInt(1)
   else n * fact(n-1)
 end fact

scala> fact(10)
val res0: BigInt = 3628800

scala> fact(1000000)
java.lang.StackOverflowError
 at fact(<console>:2)
 at fact(<console>:4)
 ...

What is going on here?

Stack overflow

 def fact(n : Int): BigInt =
   require(n >= 1, "n should be a positive integer")
   if(n == 1) then BigInt(1)
   else n * fact(n-1)
 end fact

fact(4) =
 (4 * fact(3)) =
 (4 * (3 * fact(2))) =
 (4 * (3 * (2 * fact(1)))) =
 (4 * (3 * (2 * 1))) =
 (4 * (3 * 2)) =
 (4 * 6) =
 24

In this case, memory use is \(\mathcal{\Omega}(n)\).

Tail recursion

def fact(n : Int) : BigInt =
 require(n >= 1, "n should be a positive integer")
 var result = BigInt(1)
 for i <- 2 to n do
   result = result * i
 end for
 result
end fact

A tail recursive function does not take up stack space

// Calls itself recursively n times.
// Returns a string of the stack trace as base case
def rec(n: Int): String =
  if n == 1 then Thread.currentThread.getStackTrace.mkString("\n")
  else rec(n-1)+"" // Note: +"" to create need to keep state

// Calls itself recursively n times.
// Returns a string of the stack trace as base case
def rec(n: Int): String =
  if n == 1 then Thread.currentThread.getStackTrace.mkString("\n")
  else rec(n-1) // Note: recursion is now a tail call!

scala> rec(4)
val res1: String = java.base/java.lang.Thread
  .getStackTrace(Thread.java:2451)
rs$line$3$.rec(rs$line$3:4)
rs$line$4$.<clinit>(rs$line$4:1)
rs$line$4.res1(rs$line$4)
java.base/jdk.internal.reflect.DirectMethodHandleAccessor
  .invoke(DirectMethodHandleAccessor.java:103)
java.base/java.lang.reflect.Method.invoke(Method.java:580)
dotty.tools.repl.Rendering.$anonfun$4(Rendering.scala:119)
scala.Option.flatMap(Option.scala:283)
dotty.tools.repl.Rendering.valueOf(Rendering.scala:119)
dotty.tools.repl.Rendering.renderVal(Rendering.scala:159)
dotty.tools.repl.ReplDriver.$anonfun$7(ReplDriver.scala:421)
scala.runtime.function.JProcedure1.apply(JProcedure1.java:15)
scala.runtime.function.JProcedure1.apply(JProcedure1.java:10)
scala.collection.immutable.List.foreach(List.scala:334)
dotty.tools.repl.ReplDriver
  .extractAndFormatMembers$1(ReplDriver.scala:421)
// ... Plus many more lines left out.

Tail recursion

A tail-recursive version of factorial performs the multiplication before the call:

import scala.annotation.tailrec

def fact(n : Int) : BigInt =
  require(n >= 1, "n should be a positive integer")
  // Inner recursive function using two parameters:
  // - i keep track of the recursion 'level
  // - result is the value of (i-1)!
  @tailrec def iterate(i: Int, result: BigInt): BigInt =
    if i > n then result
    else iterate(i+1, result*i)
  end iterate

  iterate(2, BigInt(1))
end fact

The annotation @tailrec is not strictly necessary, but will help Scala know that you intend the function to be tail recursive, and the compiler will warn you in case this is not possible.

Recursive data structures

• In addition to functions, the data structure can be recursively defined
• These are most naturally manipulated with recursive functions
• In this lecture, we will discuss two examples in detail:
  • Linked lists (similar to List in Scala)
  • Symbolic arithmetic expressions (e.g. \(2x + 4y - 7\))
    • This is an example of a more general tree-like data structure

Linked lists

Linked lists - why bother?

• Dynamic : prepending element is \(\mathcal{O}(1)\)
  • Inserting and removing does not require reorganising data (But, \(\mathcal{O}(n)\))
• Versatile: Can be used as basis for other data structures
  • Stack
  • Queue
  • Tree
  • …

But, as always, not one data structure for all needs. We implement linked lists to learn.

A linked list class in Scala

abstract class LinkedList[T]:
  // List empty (Nil)
  // or not (Cons)?
  def isEmpty: Boolean
  // Data
  def head: T
  // Rest of the list
  def tail: LinkedList[T]
end LinkedList

case class Nil[T]() extends LinkedList[T]:
  // Nil is empty
  def isEmpty = true
  // head is undefined in Nil
  def head = throw new java.util
    .NoSuchElementException("head of empty list")
  // tail is undefined in Nil
  def tail = throw new java.util
    .NoSuchElementException("tail of empty list")
end Nil

case class Cons[T](val head: T,
  val tail: LinkedList[T])
    extends LinkedList[T]:

  // Cons is not empty
  def isEmpty = false

  // Rest is created automatically
  // in the case class
end Cons

A linked list class in Scala - usage

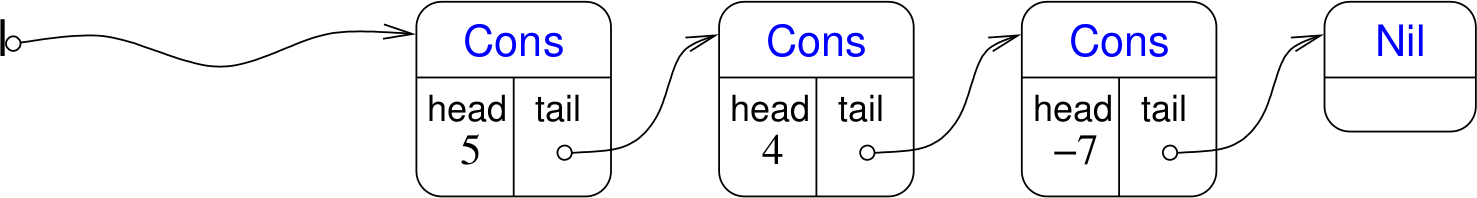

Now we can build lists like

scala> val l = Cons(5, Cons(4, Cons(-7, Nil())))
val l: Cons[Int] = Cons(5,Cons(4,Cons(-7,Nil())))

scala> l.head
val res7: Int = 5

scala> l.tail
val res8: LinkedList[Int] = Cons(4,Cons(-7,Nil()))

Notice the recursive structure?

A linked list class in Scala - usage

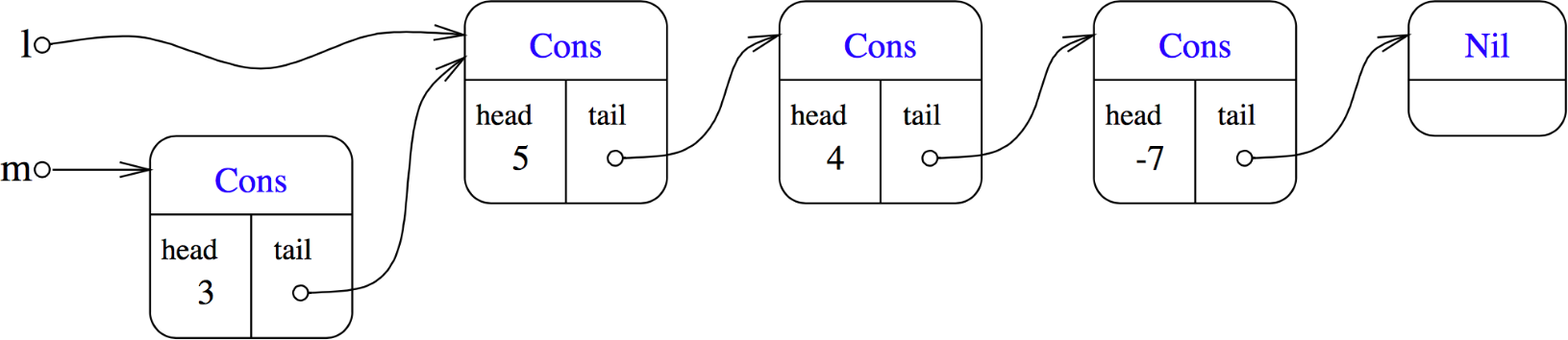

Prepending an element is easy

scala> val m = Cons(3,l)
val m: Cons[Int] = Cons(3,Cons(5,Cons(4,Cons(-7,Nil()))))

scala> m.head
val res9: Int = 3

scala> m.tail == l
val res10: Boolean = true

Note that the previous list, l, is not copied!

A linked list class in Scala - methods

What are some useful methods to have in a Linked list class?

What would we like to be able to do with it?

Linked list length

It is always useful to find the number of elements in a sequence.

• Base case: an empty list has length 0
• Recursion: length is 1 + the length of the tail

abstract class LinkedList[T]:
  // Previous code left out ...

  def length: Int = if isEmpty then 0 else 1 + tail.length

end LinkedList

Is length tail recursive?

Cons(1, Cons(2, Cons(3, Nil()))).length =
1 + Cons(2, Cons(3, Nil())).length =
1 + (1 + Cons(3, Nil()).length) =
1 + (1 + (1 + Nil().length)) =
1 + (1 + (1 + 0)) =
1 + (1 + 1) =
1 + 2 =
3

Linked list length

• Base case: an empty list has length 0
• Recursion: length is 1 + the length of the tail

A tail recursive version:

def length: Int =
  // Tail-recursive inner function, accumulating the result
  @tailrec def inner(remaining: LinkedList[A], result:Int): Int =
    if remaining.isEmpty then result
    else inner(remaining.tail, result+1)
  end inner

  inner(this, 0)
end length

Expansion:

Cons(1, Cons(2, Cons(3, Nil()))).length =
inner(Cons(1, Cons(2, Cons(3, Nil()))), 0) =
inner(Cons(2, Cons(3, Nil())), 1) =
inner(Cons(3, Nil()), 2) =
inner(Nil(), 3) =
3

Linked list contains

Check if some element e is in the list

abstract class LinkedList[T]:
  // Previous code left out ...

  def contains(e: T): Boolean =
    if isEmpty then false
    else if head == e then true
    else tail.contains(e)
  end contains

end LinkedList

abstract class LinkedList[T]:
  // Previous code left out ...

  @tailrec final def contains(e: T): Boolean =
    if isEmpty then false
    else if head == e then true
    else tail.contains(e)
  end contains

end LinkedList

Linked list contains - alternative implementation

We can do the same using pattern matching as well:

abstract class LinkedList[T]:
  // Previous code left out ...

  @tailrec final def contains(e: T): Boolean =
    this match
      case Nil() => false
      case Cons(h, t) => if (h == e) then true else t.contains(e)
    end match
  end contains

end LinkedList

Linked list reverse

How could we go about reversing the order of a list, e.g. 1,2,3 → 3,2,1 ?

abstract class LinkedList[T]:
  // Previous code left out ...
  def reverse: LinkedList[T] =

    @tailrec def inner(remaining: LinkedList[T],
      result: LinkedList[T]): LinkedList[T] =
      remaining match
        case Nil() => result
        case Cons(h, t) => inner(t, Cons(h, result))
      end match
    end inner

    inner(this, Nil())
  end reverse

end LinkedList

Expressions

Another type of recursively defined data structure is the symbolic arithmetic expression.

Expressions - definition

Assume that the operations we want to be able to use are addition, subtraction, multiplication, and negation. Then we have the following recursive definition of an expression:

1. A constant (such as \(3.0\)) is an expression
2. A variable (such as \(x\)) is an expression
3. If \(e_1\) and \(e_2\) are expressions, then \((e_1 + e_2)\), \((e_1 - e_2)\), \((e_1 * e_2)\), as well as \(-e_1\) are also expressions
4. There are no other expressions

Expressions - example:

• \(2.0\) is an expression
• \(x\) is an expression
• \(y\) is an expression
• \((2.0 * x)\) is an expression
• So, \((2.0 * x) + y\) is an expression
• So, \(-(2.0 * x + y)\) is an expression

Expressions - implementation in Scala

We use an abstract base class and case classes for the different types of expressions:

abstract class Expr:
  // More here soon..
end Expr

/** Variable expression, like "x" or "y". */
case class Var(name: String) extends Expr:
  override def toString = name
end Var
/** Constant expression like "2.1" or "-1.0" */
case class Num(value: Double) extends Expr:
  override def toString = value.toString
end Num
/** Expression formed by multiplying two expressions, like "x * (y+3)" */
case class Multiply(left: Expr, right: Expr) extends Expr:
  override def toString = "(" + left + "*" + right + ")"
end Multiply
/** Expression formed by adding two expressions, like "x + (y*3)" */
case class Add(left: Expr, right: Expr) extends Expr:
  override def toString = "(" + left + " + " + right + ")"
end Add
/** Expression formed by subtracting an expression from another, "x - (y*3)" */
case class Subtract(left: Expr, right: Expr) extends Expr:
  override def toString = "(" + left + " - " + right + ")"
end Subtract
/** Negation of an expression, like "-((3*y)+z)" */
case class Negate(p: Expr) extends Expr:
  override def toString = "-" + p
end Negate

Expressions - implementation in Scala

scala> val e = Negate(Add(Multiply(Num(2.0),
     |   Var("x")),
     |   Var("y")))
     |
val e: Negate = -((2.0*x) + y)

Expressions - implementation in Scala

We can make the expressions easier to write by overriding operators in Expr:

abstract class Expr:
  /* Overriding these operators enable us to construct
  expressions with infix notation */
  def +(other: Expr) = Add(this, other)
  def -(other: Expr) = Subtract(this, other)
  def *(other: Expr) = Multiply(this, other)
  def unary_- = Negate(this)
end Expr

// Case-classes as before here...

We can now do:

scala> -( Num(2.0) * Var("x") + Var("y"))
val res: Negate = -((2.0*x) + y)

Expression quiz

Expressions - evaluation

It would be useful to have a method to evaluate an expression. That is, given an assignment of values to all variables in an Expr return the numerical value.

• Given: map from variable names to values
• Base case: the value of Num is the value
• Base case: the value of Var is the value in the given map
• Recursion: The value of an operator expression is the operator applied to the values of the operand expressions

abstract class Expr:
  // Previous code left out ...

  /** Custom exception for when a variable isn't assigned. */
  class VariableNotAssignedException(message: String)
      extends java.lang.RuntimeException(message)

  def evaluate(p: Map[String, Double]): Double = this match
    case Var(n) => p.get(n) match {
      case Some(v) => v
      case None => throw new VariableNotAssignedException(n)
    }
    case Num(v) => v
    case Multiply(l, r) => l.evaluate(p) * r.evaluate(p)
    case Add(l, r) => l.evaluate(p) + r.evaluate(p)
    case Subtract(l, r) => l.evaluate(p) - r.evaluate(p)
    case Negate(t) => -t.evaluate(p)
  end evaluate

end Expr

Expressions - evaluation example

Evaluate -((2.0*x) + y), given \(x = 4.5\), \(y = 1.2\):

scala> val e1 = -( Num(2.0) * Var("x") + Var("y"))
val e1: Negate = -((2.0*x) + y)

scala> val p = Map("x" -> 4.5, "y" -> 1.2)
val p: scala.collection.immutable.Map ...

scala> e1.evaluate(p)

Expressions - evaluation example

Evaluate -((2.0*x) + y), given \(x = 4.5\), \(y = 1.2\)

Recursive problem solving

• Some type of problems naturally lend themselves to a recursive approach when thinking about how to find a solution
• Of the type "consistently arrange \(x\) 'pieces' in \(y\) 'locations/steps' to reach a target"

Given as input a set \(W = \{w_1,w_2,...,w_n\}\) of \(n\) integers (the steps) and an integer \(t\) (the target), is there a subset \(S \subseteq W\) with \(\sum_{z\in S}z = t\)?

(The subset sum problem, see notes)

Recursive problem solving

"consistently arrange \(x\) 'pieces' in \(y\) 'locations/steps' to reach a target"

• Consistent means adhering to some kind of rules or constraints
  • "John can not sit next to Sally",
  • "The same person cannot be in two places",
  • "Each seat can only be used once",
  • et c.
• Steps means that we can improve on a potential solution one piece at a time (as long as it remains 'consistent')
  • "Select one square in the Sudoku grid and put a number there"
• Target means that we can recognise when we have a complete solution

Recursive problem solving

"consistently arrange \(x\) 'pieces' in \(y\) 'locations/steps' to reach a target"

We can solve these problems by searching for a solution. Recursion is a natural way to implement exhaustive search, that considers every possible configuration one step at a time until it finds a solution (or every combination has been tried, and there are no solution).

Note: These kind of problems can be very hard to solve in general. Potentially \(\mathcal{O}(x^y)\).

Backtracking search

Candidate solutions are built recursively and backtracking is done if we notice that the solution is not going to work.

General idea:

• At each step we have a configuration
• Is the current configuration consistent?
  • If it also complete, then we have reached our target and found a solution
  • If it is not complete (but still consistent) then update the configuration by taking another step, and start over
• If the configuration is not consistent, then backtrack to the previous consistent configuration and try something else
  • (If there are no previous configurations, the problem does not have a solution)

Backtracking search

bsolve(config):
  if config is consistent then
     if config is complete then
        return Success(config)
     else:
        for every possible action given config do
           s = bsolve(config updated by action)
           if s is Success then return s
  else:
     return Fail
end bsolve

Backtracking example – Sudoku 4x4

Exercises
